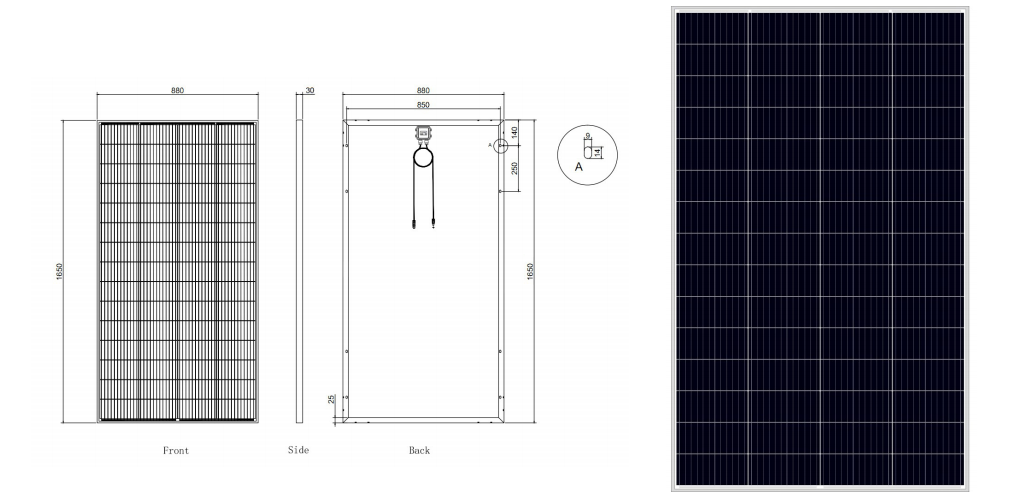

LF-300M Monocrystalline Solar Panel High Efficiency Module



Product Details



LF-300M



Electrical Characteristics

STC 1000W/M 2 Temperature 25℃ AM1.5

TYPE LF-300M
STC 1000W/M 2
Temperature 25°C AM1.5
Max. Power Output 300W
Max. Power Tolerance 0-5W
Module Efficiency (%) 20.66
Voltage MPP (V) 34.53
Current MPP (A) 8.69
Voltage Open Circuit (V) 41.83
Short Circuit Current (A) 9.25
Temperature Coefficients Isc (%/°C) 0.046
Temperature Coefficients Voc (%/°C) -0.266
Temperature Coefficients Pmpp (%/°C) -0.354
NOCT (°C) 45±2



Mechanical & Working Data

Dimensions of Module 165088030mm
Cell 210*105mm Mono
Weight (Kg) 15.5
Cable Length 900mm
Glass 3.2mm
Max. System Voltage 1000V
Mechanical Load 2400Pa
Operating Temperature (°C) -40~+85
