Solar Tracking Mounting System

Independent Single-axis 1P Tracking System relies on mature technology and design, improving energization, tracking automatically, intelligent calculation, helping project developers and asset owners get the most from their power plant. The number of installed modules can be adjusted according to the string configuration and the size of the terrain. Ideally suited for sites with challenging soils, high winds, and irregular boundaries, the tracker features slew driving system for maximum stability in extreme weather.     Project Site: Open Ground Foundation: Driven Pile, Ground Screw, Concrete Tilt Angle: Up To ± 60° Wind Load: ≤150km/h, Customized Designs Available for Higher Wind Speeds Snow Load: ≤2000Pa Applicable Module: Frame or Frame-less Module Orientation: Landscape or Portrait Origin of Product: China

Independent Single-axis 2H Tracking System optimizes lifetime value and performance, adopts multi-point linear push rod drive, features slew driving system for maximum stability in extreme weather, equipped with dampers to ensure the stability of the system. Specially designed for double-sided modules and compatible with single-sided modules. The tracker uses intelligent tracking algorithm, ensuring optimal tracking bracket position to achieve maximum power generation gain.      Project Site: Open Ground Foundation: Driven Pile, Ground Screw, Concrete Tilt Angle: Up To ± 60° Wind Load: ≤150km/h, Customized Designs Available for Higher Wind Speeds Snow Load: ≤2000Pa Applicable Module: Frame or Frame-less Module Orientation: Landscape Origin of Product: China

Independent Single-axis 2P Tracking System optimizes lifetime value and performance, adopts multi-point linear push rod drive, features slew driving system for maximum stability in extreme weather, equipped with dampers to ensure the stability of the system. Specially designed for double-sided modules and compatible with single-sided modules. The tracker uses intelligent tracking algorithm, ensuring optimal tracking bracket position to achieve maximum power generation gain.      Project Site: Open Ground Foundation: Driven Pile, Ground Screw, Concrete Tilt Angle: Up To ± 60° Wind Load: ≤150km/h, Customized Designs Available for Higher Wind Speeds Snow Load: ≤2000Pa Applicable Module: Frame or Frame-less Module Orientation: Portrait Origin of Product: China

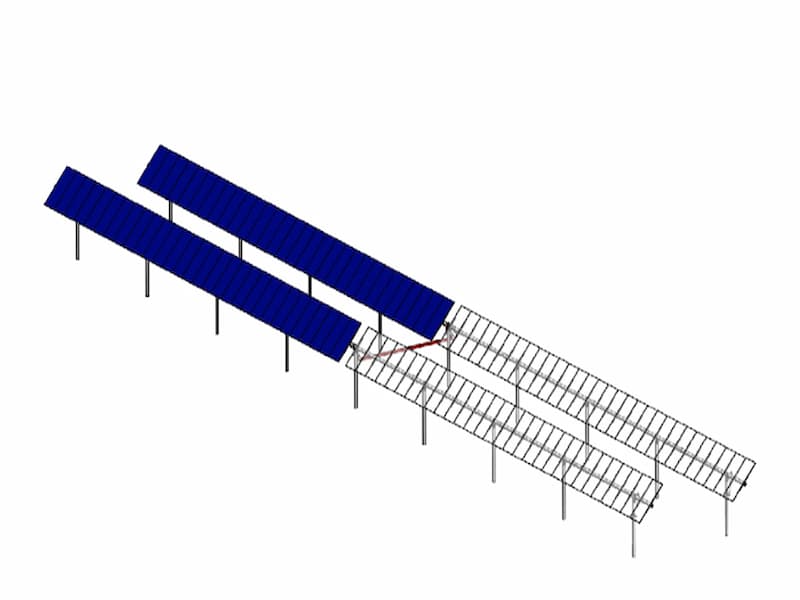

Double Row Linkage 1P Tracking System relies on mature technology and design, improving energization, tracking automatically, intelligent calculation, helping project developers and asset owners get the most from their power plant. Compared with the conventional single row tracking system, the number of electric control and drive is twice less, and the failure rate is lower. The tracker features slew driving system for maximum stability in extreme weather.      Project Site: Open Ground Foundation: Driven Pile, Ground Screw, Concrete Tilt Angle: Up To ± 60° Wind Load: ≤150km/h, Customized Designs Available for Higher Wind Speeds Snow Load: ≤2000Pa Applicable Module: Frame or Frame-less Module Orientation: Landscape or Portrait Origin of Product: China
