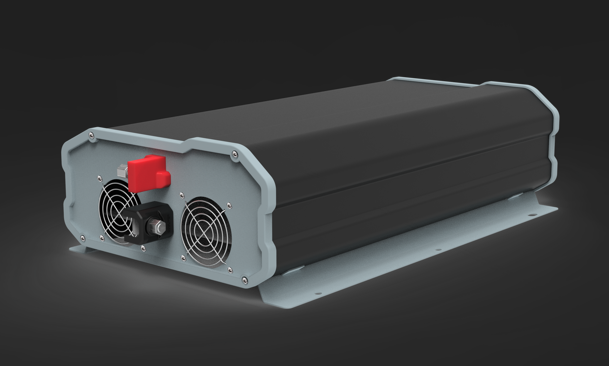

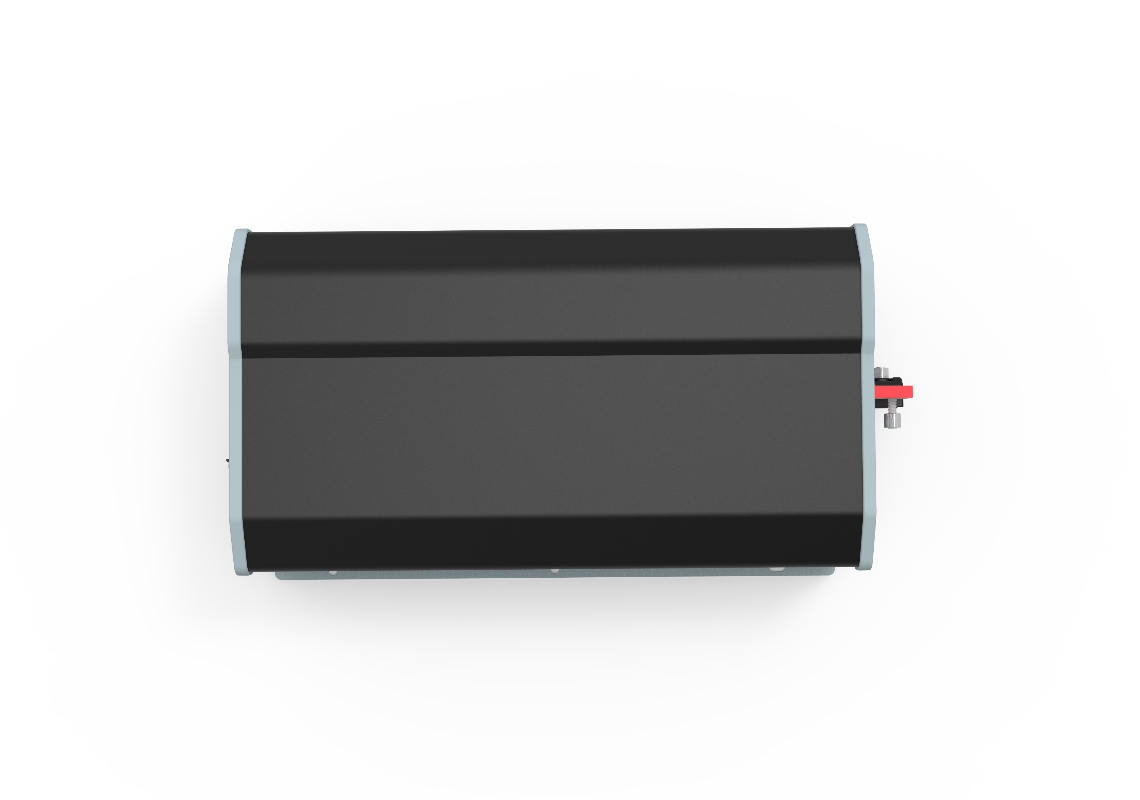

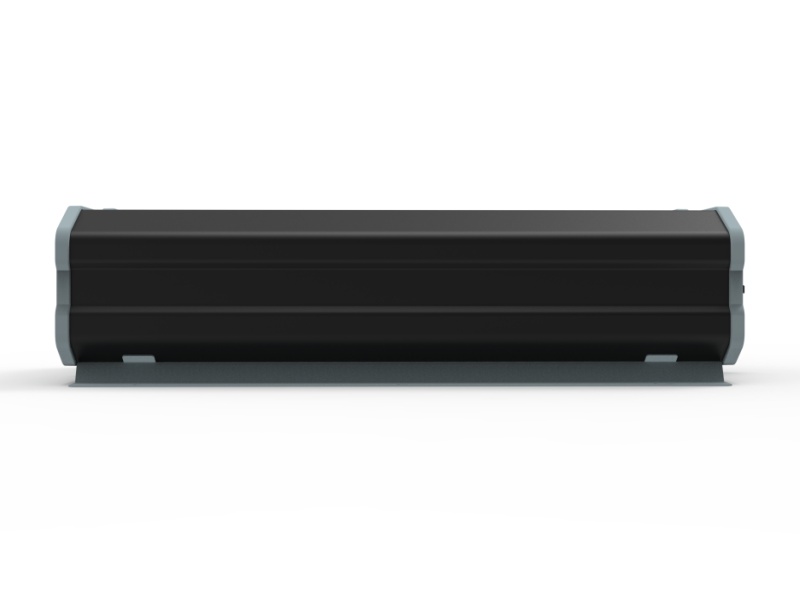

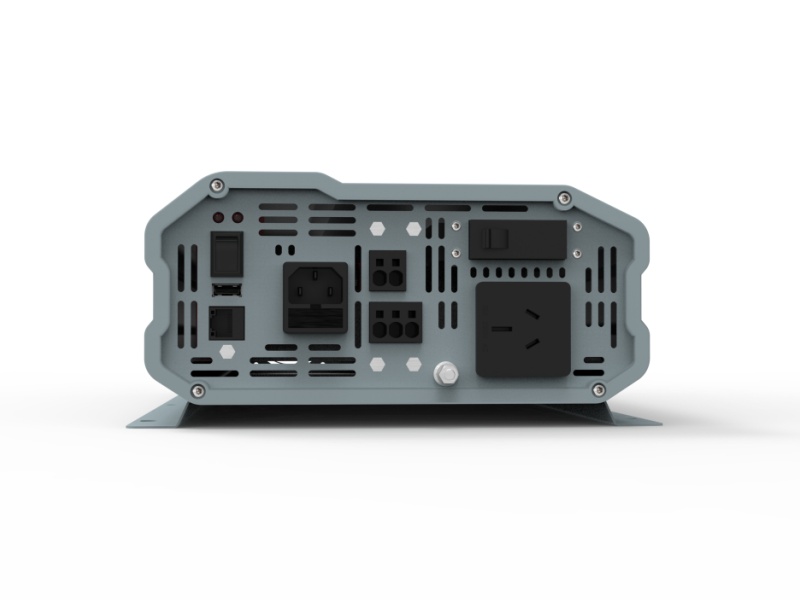

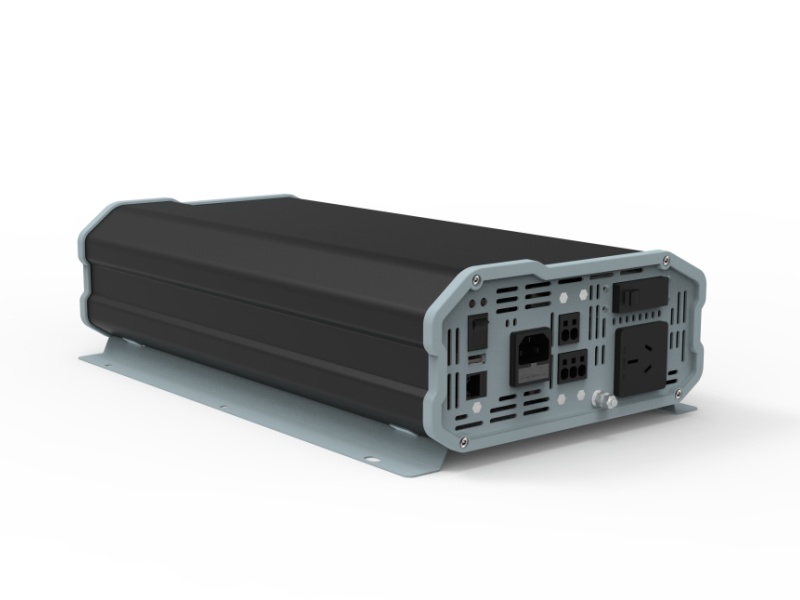

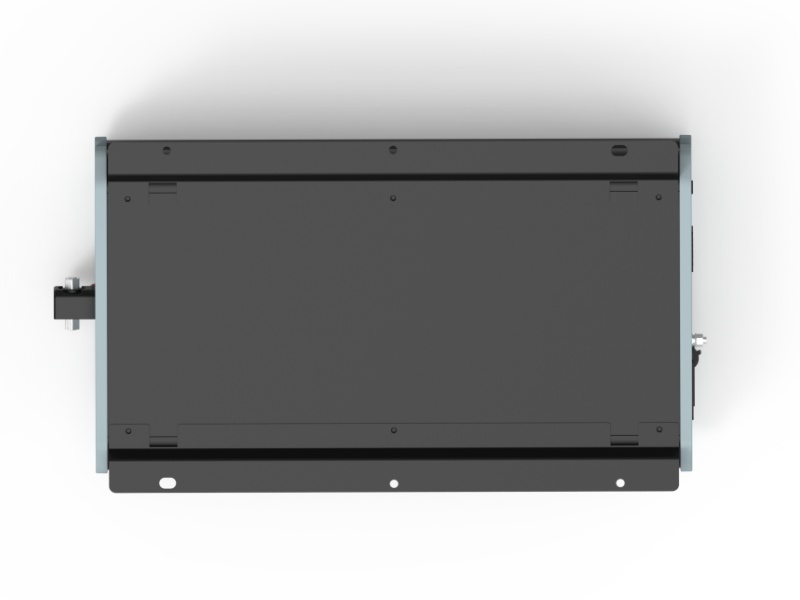

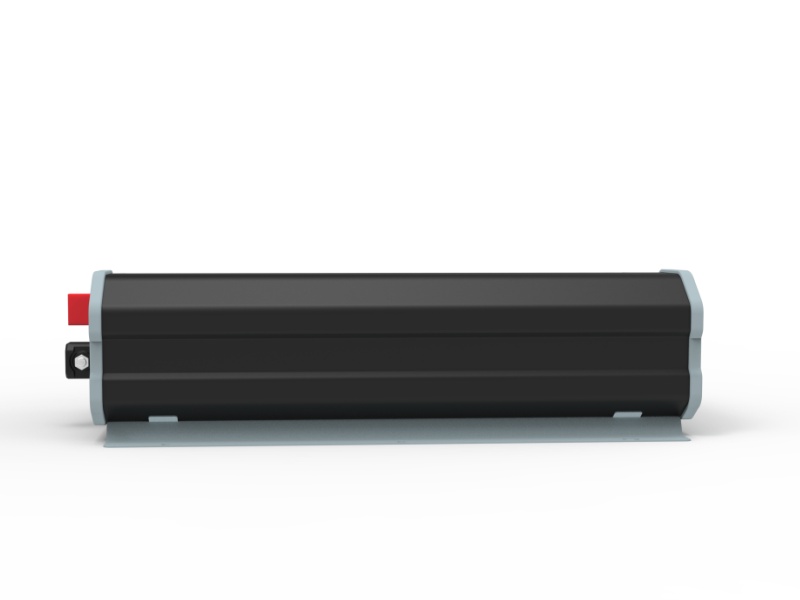

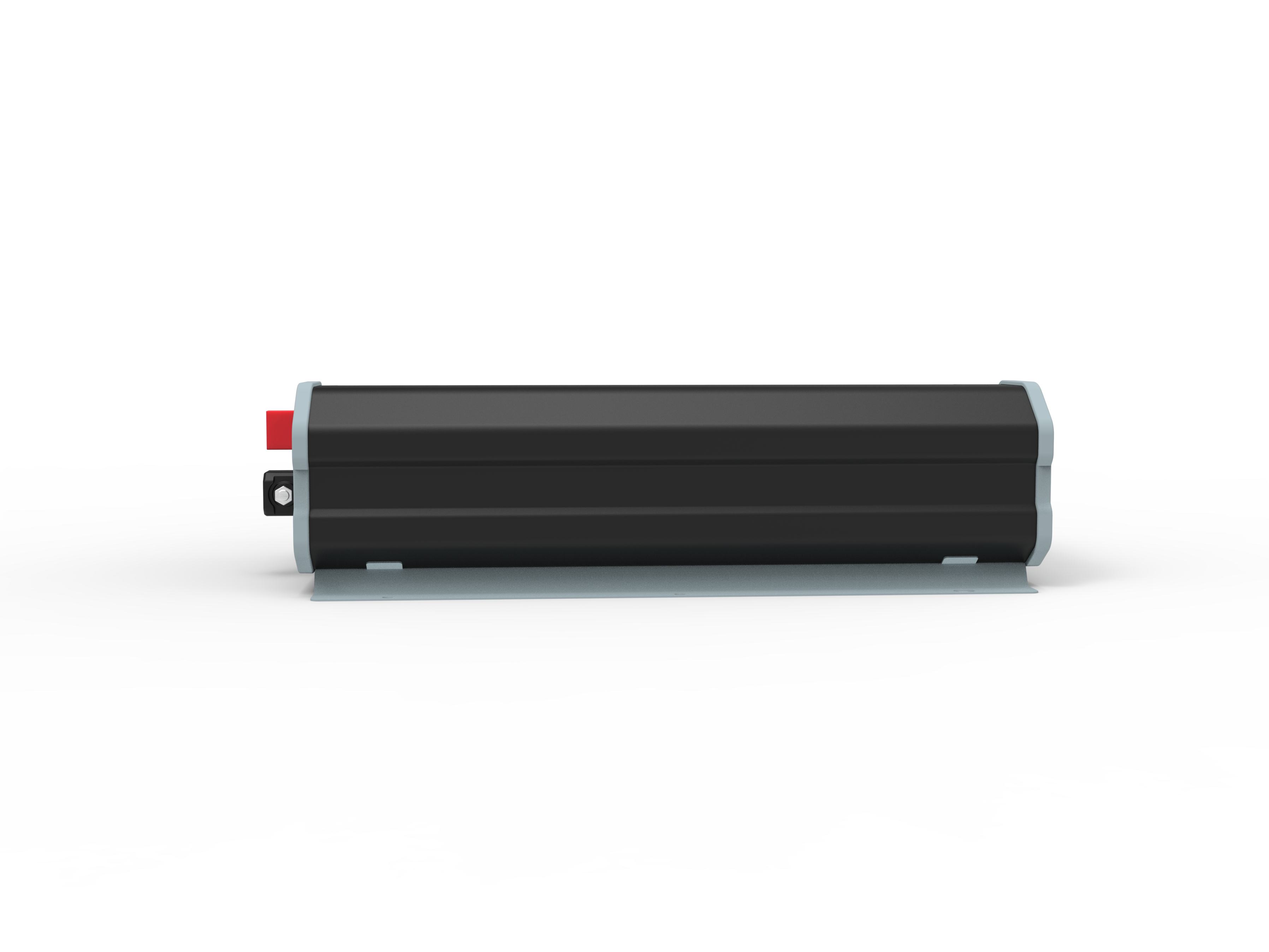

1000W~3000W Pure Sine Wave Inverter
Home

Energy Storage System

1000W~3000W Pure Sine Wave Inverter

1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter
1000W~3000W Pure Sine Wave Inverter

1000W~3000W Pure Sine Wave Inverter



C&D Emerging Energy’s pure sine wave inverter delivers stable, high-quality power output that ensures reliable performance across a wide range of devices. Whether you're powering a coffee machine, microwave, television, satellite system, printer, or other heavy-duty equipment, this inverter provides clean energy that mimics the electricity from the grid. It's the ideal solution for operating both household appliances and sensitive office electronics, offering consistent performance and protecting your devices from power fluctuations or damage.



Inquiry now



AS/NZS 4763:2011, UL458, LVD(EN60950)







  • Pure sine wave output runs all loads from households appliances to office equipment.

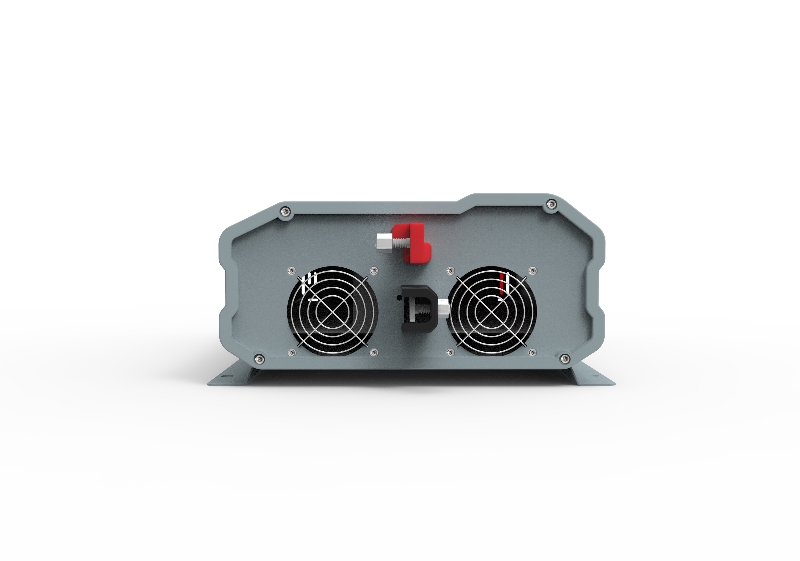

  • Independent heatsink design to decrease temperature of main case.
  • Customizable DC Input from 12~48V.
  • AC bypass function
  • External LED remote controller with 5 meters remote wire

  • 24 months warranty





MODEL SCH1000 SCH1500 SCH2000 SCH3000
Output Power 1000W 1500W 2000W 3000W
Input Current(MAX DCAmps) 30A 60A 100A 150A
Surge Power 2000W 3000W 4000W 6000W
Dc Input Voltage 12, 24 or 48 VDC
DC input Regulation 10.5-15 VDC (x2 for 24 VDC: x4 for 48 VDC)
Output Voltage 100/110/120VAC+/-3%: 220/230/240VAC+1-5%
Output Frequency 50/60Hz+/-0.05%
Output Waveform True sine wave THD<3%
AC Input Voltage 100/110/120VAC+/-3%:220/230/240VAC+/-5%
AC Input Frequency 50/60Hz+/-0.05%
Power Factor 0.8-1
Efficiency 110V 92% 92% 93% 92%
230V 93% 93% 93% 93%
CONTROL & SIGNALINDICATES
Fault indication Red LED light and buzz alarm
Work indication Green LED light
Remote Control CR10 or CR11(work with DBs battery isolator)
Battery type AGM, Seal lead acid, Gel, open lead acid, LifeO4
Protection Overload, Over/under input voltage, Over temperature, Short circuit
Safety AS/ NZS 4763:2011. UL458, LVD(EN60950)
GENERAL PARAMETER
Operating Temp  -10~45°C
Working Humidity 20%~90% RH
Storage Temp  -30-70°C
Cooling Automatic temp-control fans
Weight (kg) 3.2 3.5 4.6 5.8
Size( mm) 376*254*119 416*254*119 457.5*254*119 572*254*119
