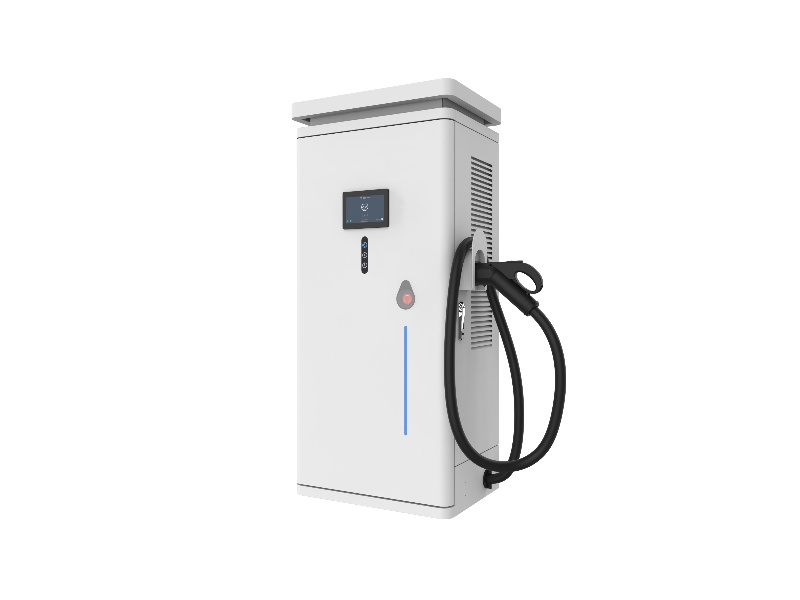

Our 20–40kW DC EV Charger is designed for versatile commercial and semi-public charging scenarios, delivering efficient fast charging in a compact footprint. With options for wall mounting or pole mounting, it fits seamlessly into parking lots, commercial buildings, and roadside stations. The charger supports multiple payment methods and offers a user-friendly 7-inch touch display with smart authentication options such as RFID and QR code. Built with robust all-weather protection (IP54 & IK10), OTA firmware upgrades, and integrated safety features, it ensures reliable operation in any environment while reducing installation and maintenance costs.
What We Can Do for You
We not only supply the complete 20–40kW DC charging units, but can also provide key modules, components, or semi-finished sets according to your local assembly plan. Beyond delivering a single product, we focus on helping you build a localized EV charging ecosystem—covering procurement, technical integration, installation guidance, and after-sales support. With our flexible supply model and engineering experience, you can quickly set up your own charging network, reduce development time, improve operational efficiency, and accelerate your market entry.
✅Small footprint, Wall mounting or Pole mounting
✅Supports multiple payment methods
✅OTA Remote Firmware Updates
✅Robust all-weather enclosure for indoor and outdoor use
| General Information | ||||
| Input Rating | 400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE | |||
| Input Current Rating | AC 35A Max | AC 55A Max | AC 75A Max | |
| Output Power | 20kW Max | 30kW Max | 40kW Max | |
| Output Voltage | 200-1000Vdc | |||
| Output Interface | 1 × CCS2/GB | |||
| Output Current | 60A Max | 80A Max | 125A Max | |
| Power Factor | ≥0.98 @ Full Load | |||
| Efficiency | ≥94% | |||
| System Protection | Overload, Overvoltage, Undervoltage, Overcurrent, Short circuit, Over temperature, Ground fault, Integrated surge protection, IMD | |||
| User Interface | ||||
| Display | 7-inch touch screen | |||
| Support Language | English (Other languages available upon request) | |||
| Button and Switch | Emergency Button | |||
| User Authentication | RFID card, QR code, Credit card (Optional) | |||
| RFID Reader | ISO/IEC 14443 A | |||
| Communication | ||||
| Network Interface | 4G, Ethernet | |||
| Protocol (EVSE&Backend) | OCPP 1.6J | |||
| Protocol (EVSE&EV) | DIN 70121, ISO 15118 | |||
| Environmental | ||||
| Operating Temperature | -35°C to 50°C | |||
| Storage Temperature | -40°C to 75°C | |||
| Humidity | 5% to 95% no condensation | |||
| Altitude | ≤ 2000m | |||
| Mechanical | ||||
| NEMA enclosure | IP54 | |||
| IK Rating | IK 10 (Screen is IK08) | |||
| Cooling | Forced Air | |||
| Charging Cable Length | 5 m or 8 m (optional) | |||
| Dimensions (WxHxD) | 400mm x 600mm x 225mm | |||
| Installation | Wall mounting, Pedestal mounting (Pedestal is optional) | |||
| Certification and standards | ||||
| Standards and compliance | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU | |||
| Certification | CE | |||
