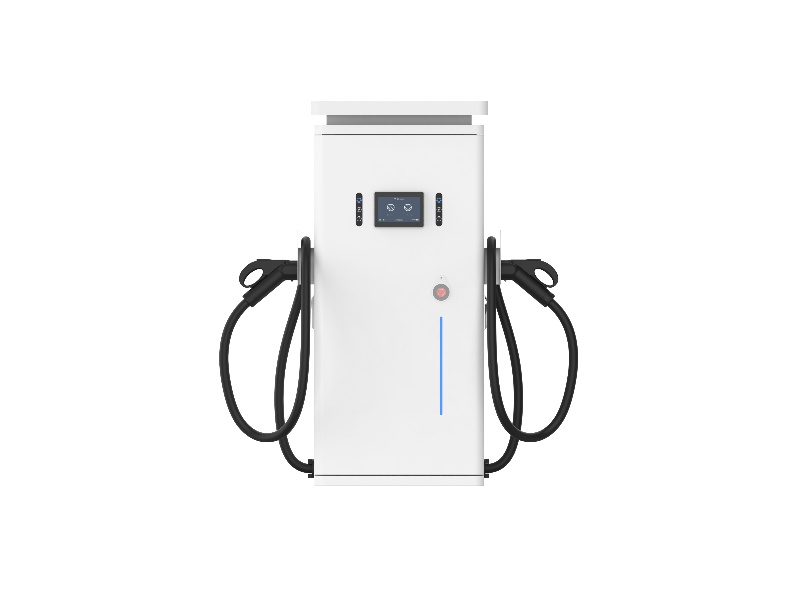

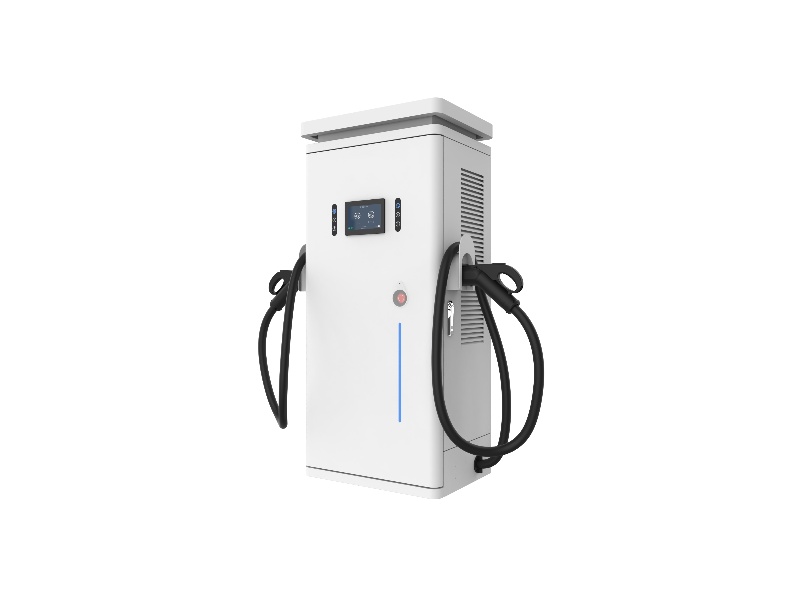

DC EV Charger 40-240kW (Double Outputs)

EV chargers are widely used for charging new energy vehicles. For commercial charging statton products, they should be equipped with a load balance management system module and a local load management module. Operators can achieve centralised monitoring and operattonal management of charging statton products by installing smart meters and energy management soffware provided by manufacturers.

✅Modularized design, convenient to expand and maintain

✅Supports multtple payment methods

✅OTA Remote Firmware Updates

✅Robust all-weather enclosure for indoor and outdoor use

Inquiry now

categories

Product Details

Model	CDEE01-40kW
Input	400VAC(3P+N+PE)50/60Hz
Output Voltage	200-1000VDC
Output current	100A
Connectors	CCS2+CHAdeMO
Effciency	≥94% at nominal output power
Power factor	>0.98
Operating temperature	-30°C to 55°C
Altitude	<2000m
Working \| Storage Humidity	≤ 95% RH \|\|≤ 99% RH (Non-condensing)
Display	7''LCD with touch screen
RFID system	ISO/EC 14443A/B
Ingress Protection	IP54 \|\|IK10
Power Electronics Cooling	Air Cooled
Weight	95kg
Insulation (input-output)	>2.5kV
Regulatory Compliance	CE \|\| EMC: EN 61000-6-1:2007,EN 61000-6-3:2007/A1:2011/AC:2012
Charging Protocol Standards	Mode 4-IEC-61851, IS0-15118, DIN 70121Mode 4- CHAdeMo 0.9, 1.0Mode 4 -GB/T 18487 2015,GB/T20234 2015,GB/T27930 2015
ength of charging cable	5m
Commnication protocol	OCPP 1.6J
Access Control	RFID: ISO/IEC 14443A/BCredit Card Reader (Optional)
Communicati0n	Ethernet-Standard3G/4G Modem (Optional)
Electrical Safety: GFCI	RCD 30 mA Type A
Electrical Safety: Surge Protect	20 Ka
Electrical Safety General	Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short	Output power disabled when output is short circuited
Electrical Safety Temperature	Temperature Sensors @ charge Coupler and Power Electronics
Emergency Stop	Emergency Stop Button Disables Output Power
