Low-voltage Residential ESS

Energy Storage System

Low-voltage Residential ESS

Low-voltage Residential ESS

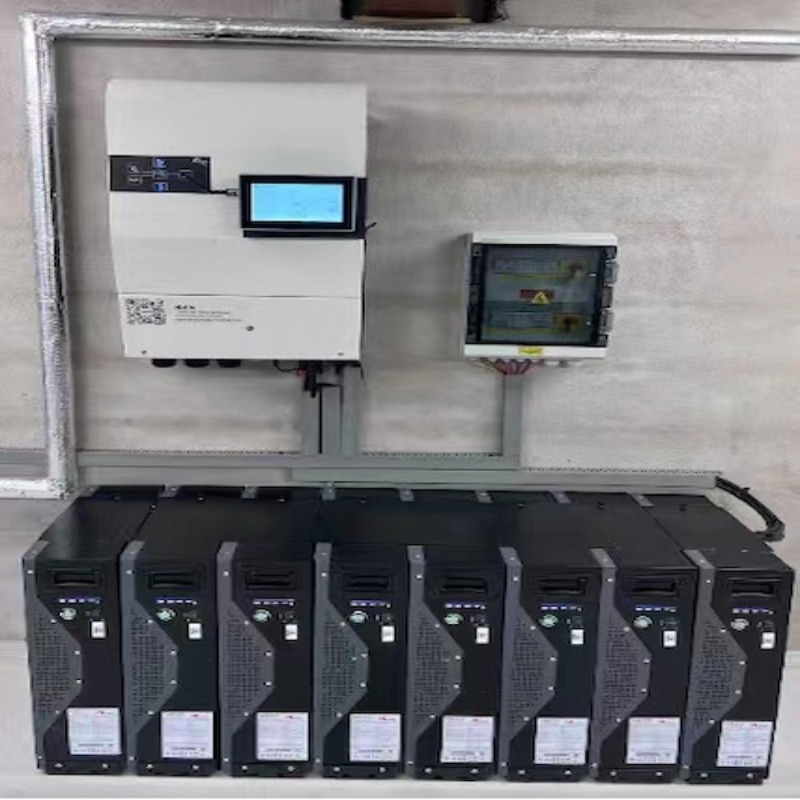

C&D EMERGING ENERGY provides diversified options for residential lithium battery energy storage. Make your Home Green with C&D Batteries just connect your existing Photovoltaic System or install a new one with a Hybrid inverter to be immediately energy independent.







C&D EMERGING ENERGY's energy storage systems provide energy storage and output management in power generation. The electrochemical technology and renewable energy power generation technology form a joint system. Through the high-level consistency of cells and the powerful computing of BMS, C&D EMERGING ENERGY enables the power generation to restore a stable power grid, optimize the power output curve, reduce solar and wind curtailment, provide system inertia and the functions of frequency and peak modulation, increase the proportion of renewable energy in total power generation, and optimize the energy structure.







- BMS with self ID capability.


- Wall mounted, floor mounted, stackable, for parallel application.


- High capacity thanks to expandible and simple configuration.


- Wireless monitoring for real time and mainteinance.









Basic Parameters 4K4-LT
Battery System Maximum Capacity 4.7 kWh
Battery System Capacity 4.4 kWh
Single Module Nominal Voltage 51.2 Vdc
Application Low Voltage
Modules Expandability 15 direct parallel (Stack max 5 units)
Ingress Protection IP 30 (Indoor application Only)
Cluster Net Capacity 66 ~ 462 kWh (with LV HUB for multi-cluster application)
Voltage Range 46.5~ 58.4 Vdc
Usable Capacity 86 Ah
Dimensions(mm) 492 x 580 x 155
Weight 46 Kg
Max. Charge / Discharge Current Up to 1C max
Standard Charge / Discharge Current 0.5C
Depth of Discharge Up to 95 %
Communication Interface RS485, CAN, RS232, Wi-Fi & Bluetooth (with External device)
Discharge Temperature (*) -20~+65%C
Charge Temperature(*) -5~+ 55°C
Stanard Temperature Range (°C) 25°C土10°C
Humidity 5%~95% RH
Altitude < 3000 m
Expected Cycle Life @ STC > 6000 (25°C)
Standards CB /IEC62368 /1EC62619 / CE /UN38.3


(*) The above-mentioned temperatures are limited to the BMS ranges, such values are not intended to be covered bythe performance warranty, always refer to the warranty terms and the installation manual before buying








Battery Module 2 3 4 5 5+5+5**
Battery System Capacity (kWh) 8.8 13.2 17.6 22 67.5
Voltage Range(Vdc) 46.5~ 58.4
Dimension (D x W x H) (mm) 580 x 492 x 310  580 x 492 x 465 580 x 492 x 620   580 x 492 x 775 3x (580 x 492x 775)
Weight (Kg) 92Kg 138Kg 184Kg 230Kg 690Kg
Depth of Discharge 95%
Charge / Discharge Current (Recommended) 172 243 288 315 945
Communication RS485, CAN,RS232, Wi-Fi (with External device)
IP Rating IP30
Working Temperature(℃)(*) -20°C~+55°C
Stanard Working Temperature Range(℃) 25°土10°C
Storage Temperature(℃) -10 + 40 (℃) @ 1month
Humidity 5 % ~ 95 % non-condensing
Altitude (m) < 3000
Expected Cycle Life @ STC (*) > 6000 (25°C)
Standards CB/ IEC62619 /EC62368 / CE / UN38.3
Monitoring External Wi-Fi monitoring Dongle suitable for single battery or cluster


(*) See warranty terms and conditions.
