Moto-micro Balcony Power Station

Moto-micro Balcony Power Station

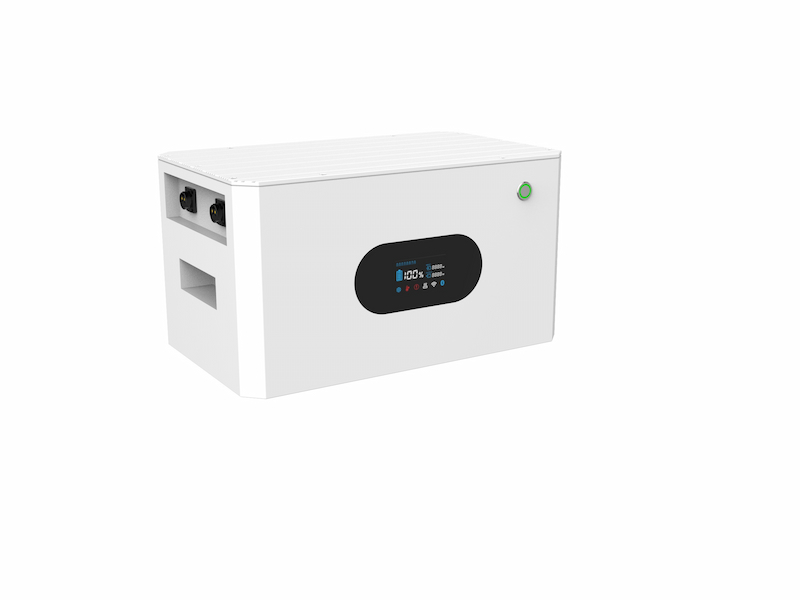

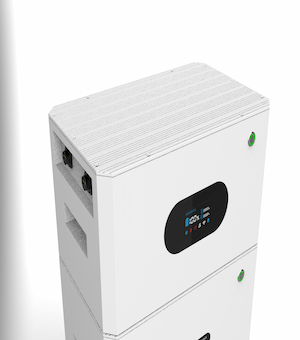

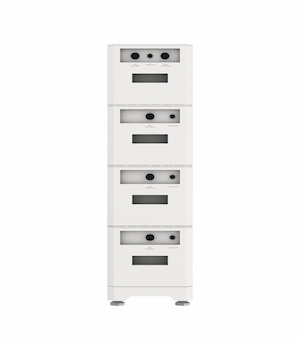

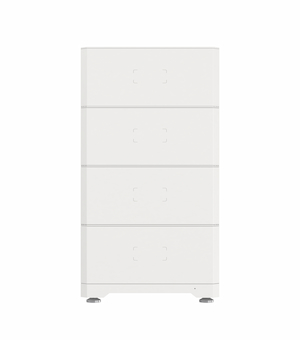

The Moto Balcony Station is a home-use small-scale energy storage system consisting of 1-3 secondary units and one main unit. With its stackable and lightweight design, it can be flexibly adapted to various scenarios. The system can scale from 2.15kWh up to a maximum of 6.45kWh, and features an autonomous heating system, perfectly meeting your balcony energy storage needs.

  • Cell Type :

    LiFePO4 (LFP)
  • Rated Voltage (V) :

    42.6
  • Rated Capacity (Ah) :

    54
  • Rated Energy (kWh) :

    2.15

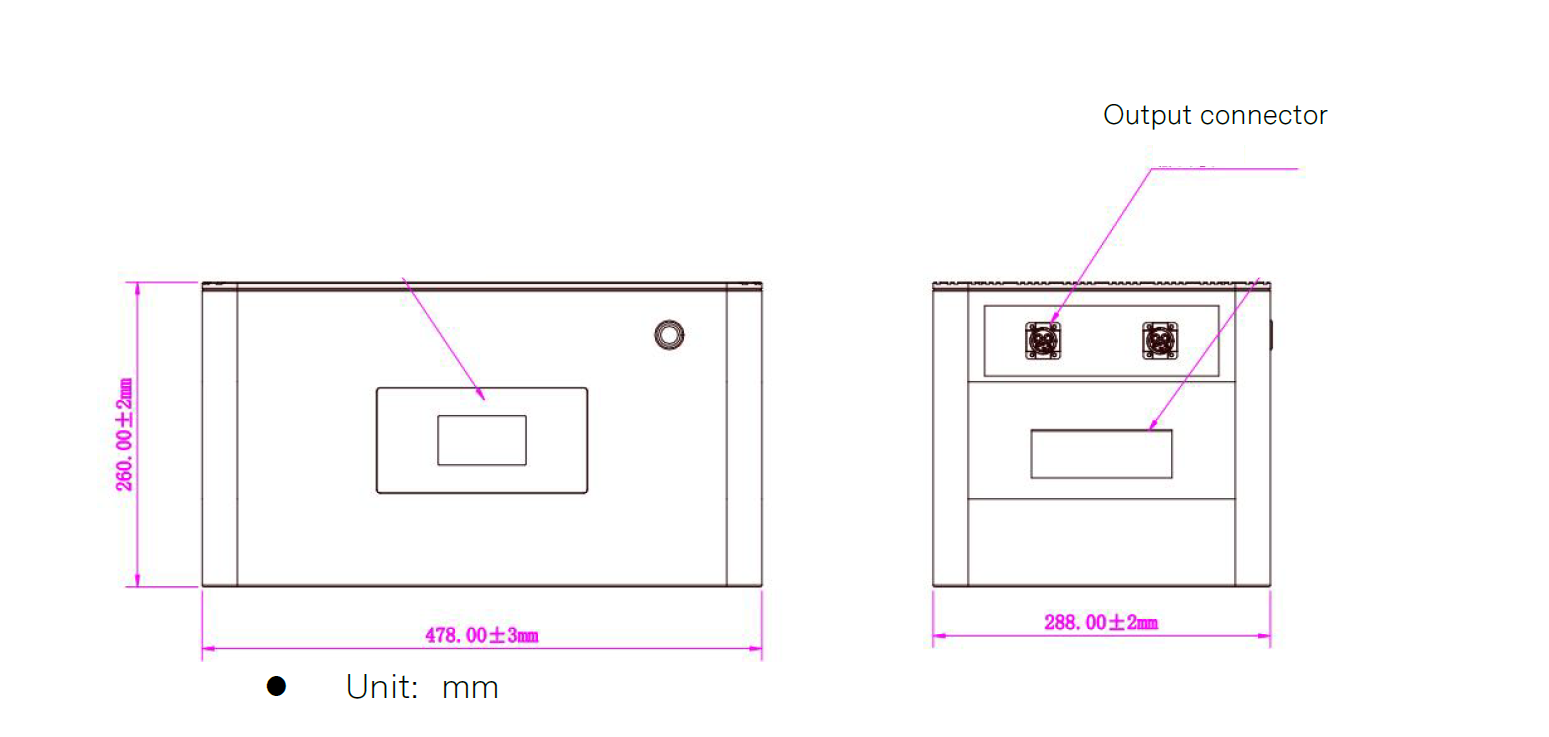

  • Dimension (mm) :

    479*289*261
  • Connection :

    1P16S
  • Working Temp. (℃) :

    -20 ~ 40
  • Self-discharging Rate :

    ≤5% (25 °C, 50% SoC) Per Month
  • IP Rating :

    IP65 (Foundation needed)
  • Scenario :

    Indoor
  • Net Weight (KG) :

    32.5
  • Communication :

    CAN, RS485, Dry Contact, WiFi
  • Certificate :

    IEC62619, IEC62040, IEC61000, UN38.3
  • Calendar Life :

    15 Years (Working Condition 0.5 C @ 25 deg C, 80% DoD, 1 cycle per day)
  • Designed Cycle Life :

    3000 Cycles (0.5C/80%DOD/80%SOH/1 cycle per day)



IEC61000/IEC62040/IEC62619/CE/UN38.3/TUV







Compact and lightweight, occupying minimal floor space.

Convenient and easy to install.

Versatile for indoor and outdoor use, with support for maximum IP65.

Simple battery capacity expansion capabilities.

Self-heating for Low Ambient Temperature(optional)
