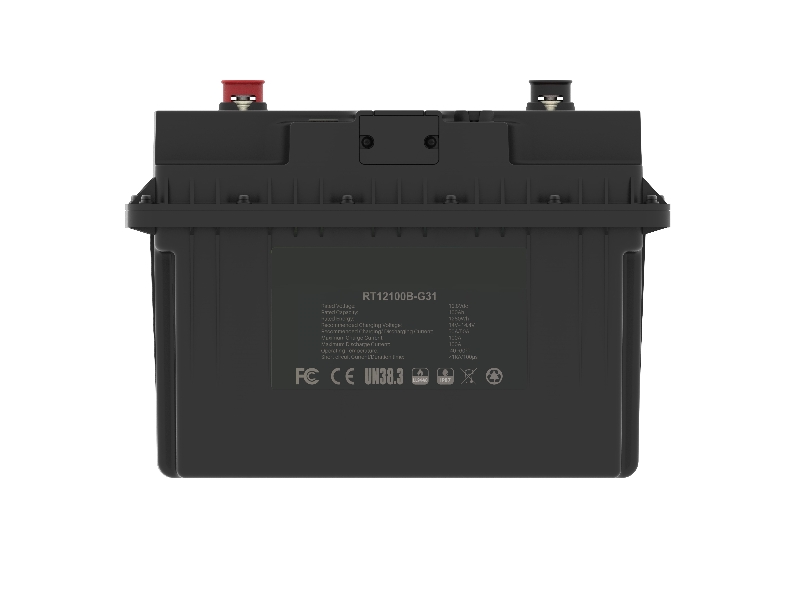

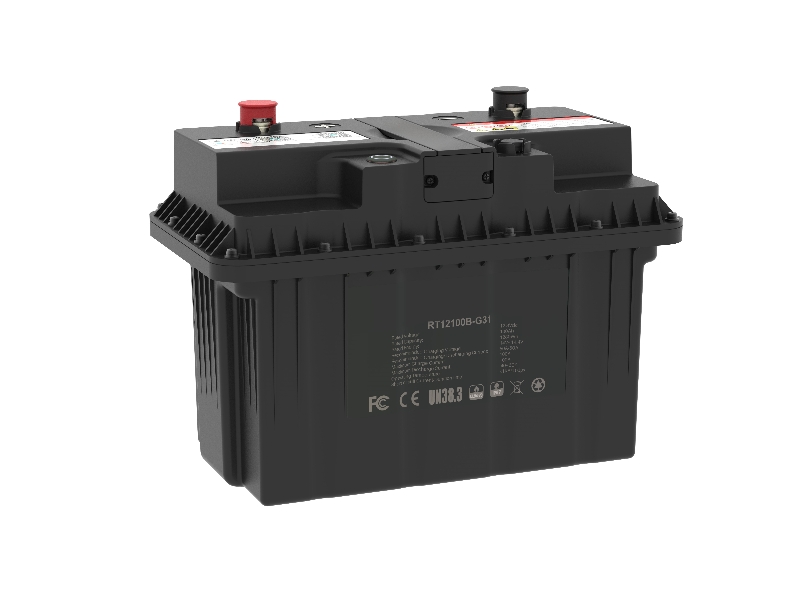

C&D Emerging Energy proudly presents its 12V lithium iron phosphate (LiFePO₄) battery module, built in the industry-standard BCI Group 31 size. This compact yet powerful battery is an ideal solution for a wide range of deep-cycle applications — including recreational vehicles (RVs), boats, trucks, remote cabins, and other off-grid setups. Designed as a direct replacement for traditional deep-cycle lead-acid batteries, it offers significantly improved performance, longevity, and efficiency.The battery features robust internal protection against common electrical issues such as under-voltage, over-voltage, over-current, over-temperature, under-temperature, short circuits, and system errors. These intelligent safeguards ensure safe and stable operation in demanding environments. In addition, the battery supports advanced management functions, including precise State of Charge (SoC) monitoring and automatic cell balancing, helping users maintain optimal performance and extend the battery’s service life.With its durable design and intelligent control, this 12V LiFePO₄ battery delivers reliable, maintenance-free energy — making it the perfect power companion for life on the road, on the water, or off the grid.
Certification
UN38.3, TELEC, FCC, IEC 62619, Bluetooth SIG
Features
the built-in advanced BMS manages charging and discharging status, helps in balancing the individual cells, and ensures intelligent automatic protection against over-voltage, under-voltage, over-current, over-temperature, under-temperature and short circuit.
With the high energy density lithium cells, our battery is half the weight of the lead acid battery of equivalent energy, and 70% the size of the regular lithium battery of equivalent energy. It's easier to carry, faster to charge, and more convenient to use.
The built-in Bluetooth module allows real-time monitoring via mobile devices.
The battery can be stored for up to 6 months if it is turned off after being fully discharged, and can be stored for up to 12 months if it is turned off when its level is between 40% and 70%.
The battery supports up to 16 identical batteries in 4S4P/1S16P connection, building a battery system with a max. energy output of 20.48 kWh.
With a KIT-C1 communication box, you can form a battery network to extend external communication and control functions of these batteries, such as CAN
communication, RS485 communication, and dry contacts
| Electrical Specifcation | |
| Nominal Voltage | 12.8 VDC |
| Nominal Capacity | 100 Ah |
| Resistance | <10 mΩ |
| Self Discharge | ≤3% per month |
| Max. Batteries in Parallel or Series | 4S4P/IS16P |
| Cycle Life (25°c) | >4500 (80% DOD, 0.5 C, 25 °C) |
| Design Life | ≥10 years |
| Short Circuit Current Duration | ＜1 kA/100 us |
| Discharge of Depth (DoD) | 100% |
| Discharge Specifcation | |
| Max. continuous Discharging current | 100 A |
| Peak Discharging current | 200 A @30 s |
| Charge Specifcation | |
| Recommended Charging Current | 50 A |
| Max. Continuous Charging Curent | 100 A |
| Recommended Charging Voltage | 14 V~14.8 V |
| Environment Specifcation | |
| Storage Temperature | -4℉~140℉(-20°C~60℃) |
| Operating Temperature | -4℉~122℉(20°C~50°C *The battery does not support charging when the temperature is below 32 'F (0 °C) |
| Max. Altitude | 13123 ft (4000 m) |
| Relative Humidity | 5%~95% (non-condensing) |
| Mechanical Specifcation | |
| Dimensions (LxWxH) | 12.8 in x 6.83 in x 937 in (325 mm x 173.5 mm x 238 mm) |
| Weight | Approx. 26.46 lbs (12 kg) |
| Terminal Type | M8 |
| Terminal Torque | 9 ±1N-m |
| Case Material | PC |
| IP Rating | IP67 |
| Cell Type-chemistry | LiFePO4 |
| Communication | BLE 5.0 |
