With variable mounting angles and different base options, C&D Emerging Energy Solar Flat-roof PV Mounting System are widely applied in residential, commercial and utility. With unique design and pre-assembly accessories, solar pv flat roof mounting system will save a lot of time on installation and save a lot of space on transportation. It can not only be used on flat roof, but also applied to ground solar system installations.
| Project Site: Open Ground | Foundation: Screw or Concrete Bases |
| Tilt Angle: 0-60° | Wind Load: ≤60m/s |
| Snow Load: ≤2500mm | Applicable Module: Frame or Frame-less |
| Module Orientation: Landscape or Portrait | Origin of Product: China |
This Flat Roof Solar Mounting System is designed for concrete flat roofs and metal/steel deck roofs. It uses ballasted, non-penetrating mounting to secure PV modules in portrait or landscape orientation.
The system accommodates modules measuring 1650–2384 mm × 990–1303 mm (standard framed/frameless module range), with frame thicknesses of 30–50 mm. Available mounting angles are 0°–60°, fixed or adjustable. The main structure is made from AL6005-T5 aluminum alloy and SUS304 stainless steel with hot-dip galvanizing (≥80 μm) on steel parts and anodizing (≥10 μm) on aluminum parts.

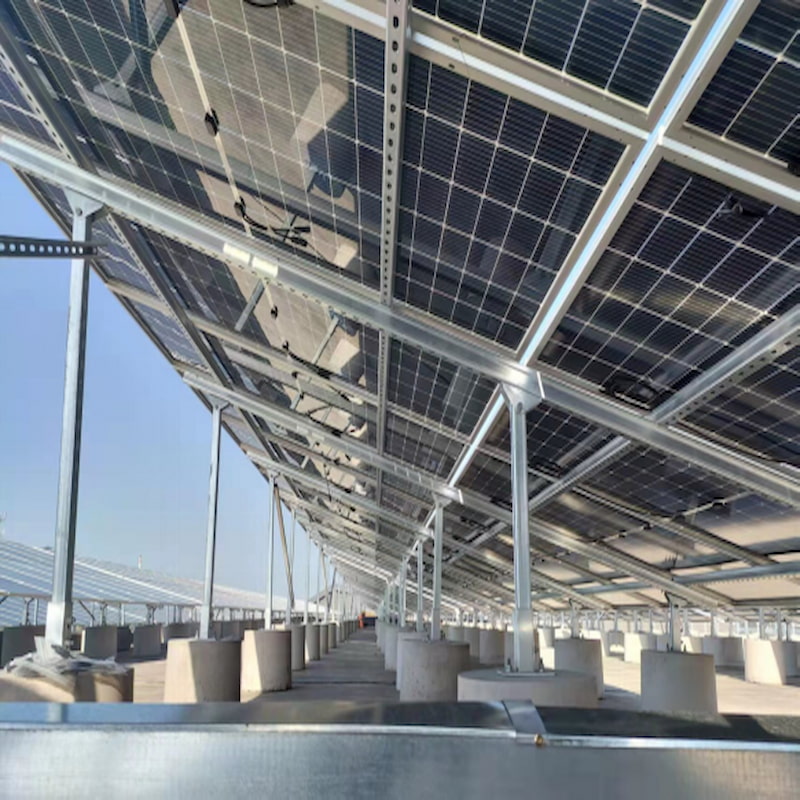

The support feet are made from AL6005-T5 material and are delivered at the highest level of pre-assembly, ready to be deployed on site. Optimized by experienced engineers, the design can be supplied with different joints to suit different site conditions. lt is available with either ground screw or concrete foundations, and allows for variable inclinations and heights, giving greater flexibility in plant design.

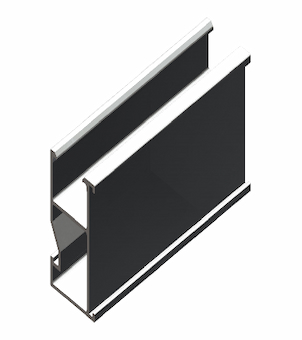

| Project Check | Product Compatibility | Selection Guidance |
|---|---|---|
| Roof Construction | Poured concrete flat roofs and profiled steel/metal deck roofs | Use this system only where the mounting base can be supported and secured according to the specified requirements. |
| Roof Covering | Bare concrete, waterproof membrane, or standing-seam/profiled metal sheeting | Select the roof interface designed for your specific roof covering. Unlisted coverings require separate assessment. |
| Roof Slope | 0°–5° (flat / low-slope roofs); tilted flat-roof sections assessed on request | Roofs outside this range require another mounting configuration. |
| Fixing Method | Ballasted installation using concrete blocks or gravel, with no roof penetration | Confirm that ballast installation is permitted for your roof structure and local requirements. |
| Module Dimensions | 1650–2384 mm (L) × 990–1303 mm (W), suitable for framed and frameless modules | Modules outside this dimensional range require a customized mounting solution. |
| Module Frame Thickness | 30–50 mm frame thickness | Select clamps that match the module frame thickness and approved clamping zones. |
| Frameless Modules | Supported with dedicated frameless clamp kits | Frameless modules require compatible mounting hardware designed for frameless installation. |
| Module Orientation | Portrait or landscape installation | Select the corresponding rail layout and component quantity according to module orientation. |
| Mounting Angle | 0°–60°, fixed or adjustable angle configurations | Choose the suitable support structure based on the required tilt angle. |
| Roof Load Capacity | System weight varies by module quantity and rail length; ballast requirements are calculated according to site wind, snow load, and roof capacity | Evaluate the complete system, including modules, mounting structure, and ballast, based on the available roof load capacity. |
| Wind and Snow Conditions | Designed for wind speeds up to 60 m/s and snow loads up to ≤2500mm (site-specific calculation available) | Use the standard configuration only within the documented design limits. |
| Your Requirement | Recommended Configuration | What to Check Before Ordering |
|---|---|---|
| Portrait module installation | Portrait Rail Assembly | Confirm module dimensions, rail spacing, and approved clamping positions. |
| Landscape module installation | Landscape Rail Assembly | Confirm module dimensions, support spacing, and approved clamping positions. |
| Required module tilt angle of 0°–60° | Fixed-angle or adjustable-angle support kit | Check rear support height, row spacing, and structural load rating. |

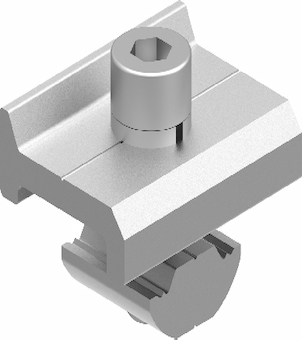

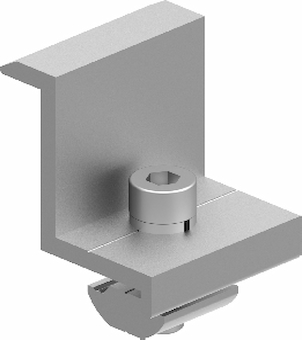

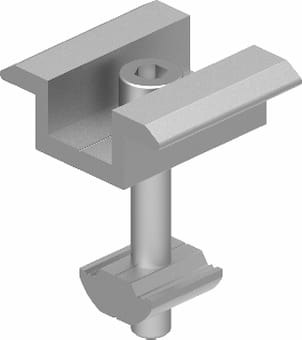

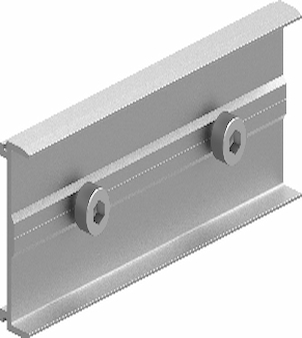

| Module frame thickness of 30–50 mm | Standard adjustable mid/end clamp kit | Confirm clamp engagement and compliance with module manufacturer requirements. |
| Frameless module installation | Frameless clamp kit | Confirm dedicated frameless mounting hardware and clamp compatibility. |
| Concrete or metal deck roof installation | Matching ballast tray / roof protection base kit | Verify roof compatibility and attachment details before installation. |
The selected configuration determines the required support members, rail lengths, clamp quantities, and fixing arrangement. Always use the matching component list and installation drawings when preparing your project quotation or purchase order.
Flat roof solar panel mounting can be considered for warehouses, factories, commercial buildings and residential properties where roof condition and structural capacity support a PV installation.
● Warehouses and factories: Arrange modules around rooflights, ventilation equipment and maintenance routes.
● Commercial buildings: Coordinate the array with rooftop services, drainage outlets and access requirements.
● Residential flat roofs: Select module orientation and tilt to suit limited roof space and nearby shading.
For standing seam metal roofs, explore our Solar Standing Seam Roof Mounting System.
AT A GLANCE
Fits perfectly both in portrait and landscape configurations
All metal construction-no sharp edges
Fully integrated and protected cable management system
Universal components can be used for different systems
Certified by main industry bodies
