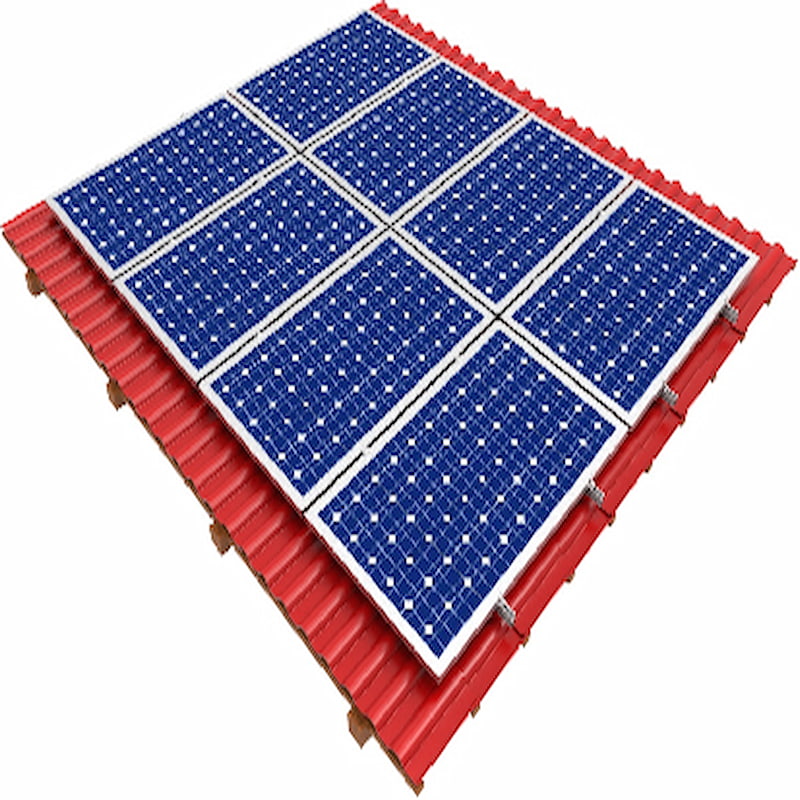

Tile Roof Solar Mounting System is a set of hardware that is used to secure solar panels to a tile roof. These systems are designed to withstand the weight of the solar panels and provide a secure attachment that won't damage the tiles or compromise the integrity of the roof.
| Project Site: Roof with Angeled Flap or Flat Roof | Foundation: Screw or Concrete Bases |
| Tilt Angle: 0-60° | Wind Load: ≤60m/s |
| Snow Load: ≤2500mm | Applicable Module: Frame or Frame-less |
| Module Orientation: Landscape or Portrait | Origin of Product: China |
C&D Emerging Energy Tiled Roof Solar Mounting Bracket offers perfection solution for installation on tile roofing. The key stainless steel roof hooks is suitable for nearly all coverings which include pan tiles, plain tiles, slate tiles. Systems are fully compliant with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.It provides a secure connection between the PV module, rail system and roof structure while helping reduce the risk of tile damage during installation.
A tile roof solar mounting system should be selected according to roof tile type, roof pitch, rafter position, PV module size, wind load, snow load and waterproofing requirements. C&D Emerging Energy provides tile roof mounting components and project matching support for different rooftop solar installation conditions.
Different tile roofs require different roof hook and bracket designs. Before quotation, buyers should confirm the roof tile profile, roof pitch and fixing position.
| Roof Type | Suitable Mounting Solution | Main Buyer Concern |
|---|---|---|
| Clay Tile Roof | Stainless steel tile hooks with aluminum rails | Avoid tile cracking and reduce leakage risk |
| Concrete Tile Roof | Adjustable roof hooks and rail system | Stable fixing and correct rail alignment |
| Flat Tile Roof | Low-profile hook or tile-specific bracket | Neat installation and proper load distribution |
| Slate Roof | Special hook design with careful fixing | Protect fragile slate tiles |
| Spanish / S Tile Roof | Curved or adjustable tile hook | Match curved tile profile |
| Roman Tile Roof | Customized hook according to tile height | Fit tile shape and rafter position |
| Commercial Pitched Roof | Tile hooks, rails, clamps and fasteners | Installation efficiency and structural safety |
Types of Tile Roof Mounting Systems:
Tile hooks, tile flashing mount , tile anchor mounts
-
Features
Various mounting solutions for tile roof: top-fix clamping system, top-fix insertion system, side-fix clamping system, side-fix insertion system.

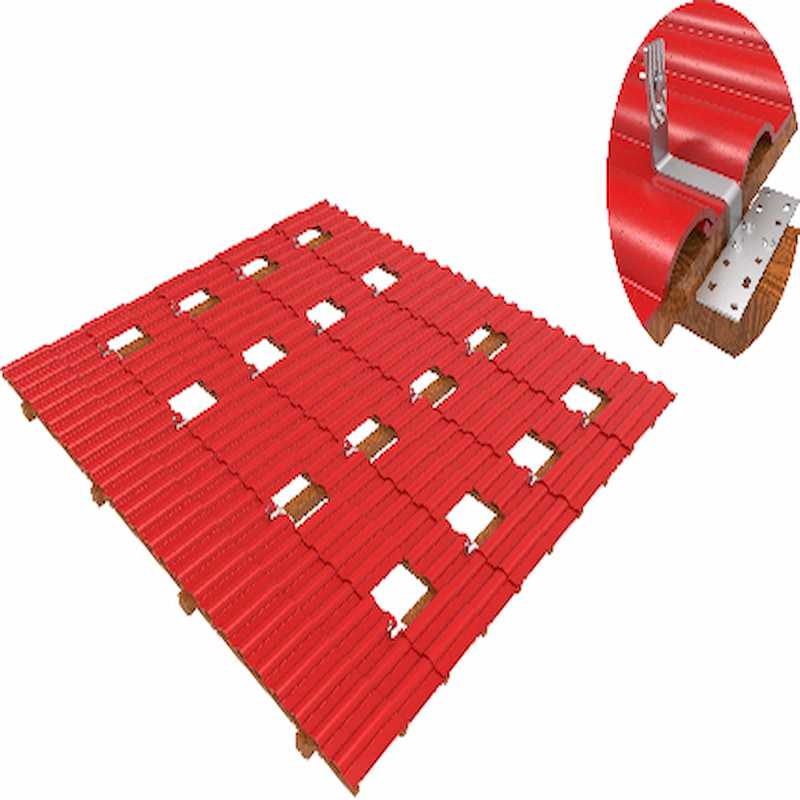

Roof hook does not touch the tile, no risk of tile damage.
The Solar Tile Roof Mounting System can be used for:
Residential rooftop solar systems
Villa and private house PV projects
Commercial pitched roof solar projects
Clay tile roof solar installation
Concrete tile roof PV installation
Slate roof solar mounting projects
Spanish tile roof solar projects
Distributed rooftop PV systems
Solar installation projects for installers and distributors
Tile roof PV projects vary by country, roof type and building condition. C&D Emerging Energy can support product selection and project matching according to actual installation requirements.
Customization can include:
Roof hook type
Rail length and rail layout
PV module size and frame thickness
Portrait or landscape module orientation
Roof pitch and tile height
Wind load and snow load requirement
Material and surface treatment selection
Clamp and fastener matching
Packing list and component labeling
Installation guidance and project document support
Solar tile roof mounting components are used outdoors for long-term PV power generation, so material quality, dimensional accuracy, fastener matching and surface treatment should be checked before shipment. Important quality control points include:
Roof hook strength and hole position
Rail dimension and surface treatment
Clamp matching with module frame thickness
Fastener material and tightening compatibility
Component quantity according to BOM list
Packing condition for export delivery
Project documentation and installation guidance when required
For projects with special wind, snow or local building code requirements, structural calculation and compliance documents can be reviewed according to project needs.
Q:Can the roof hook avoid damaging roof tiles?
A:The roof hook is designed to transfer the PV system load to the roof structure instead of relying on the tile surface. Proper hook selection, tile clearance and installation method help reduce the risk of tile cracking.
Q:What components are included in a tile roof solar mounting system?

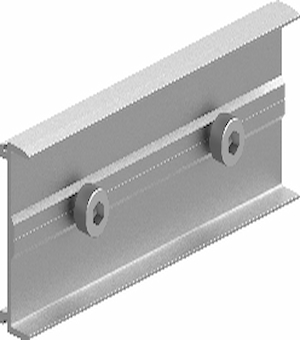

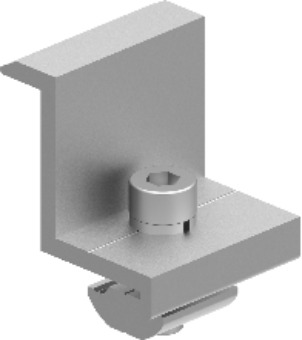

A:The system usually includes roof hooks, aluminum rails, end clamps, mid clamps, rail splice kits, fasteners and optional waterproof or grounding accessories according to project requirements.
If you need a solar tile roof mounting system for residential, commercial or distributed rooftop PV projects, C&D Emerging Energy can recommend suitable hooks, rails, clamps and accessories according to your roof type and module specifications. Send your roof photos, module datasheet and project information to receive product matching support and quotation details.
