Solar Tile Roof Rail Mounting Bracket
Home

Solar Racking System

Solar Tile Roof Rail Mounting Bracket

Solar Panel Mounting Kit for Tile Roof

Solar Tile Roof Rail Mounting Bracket

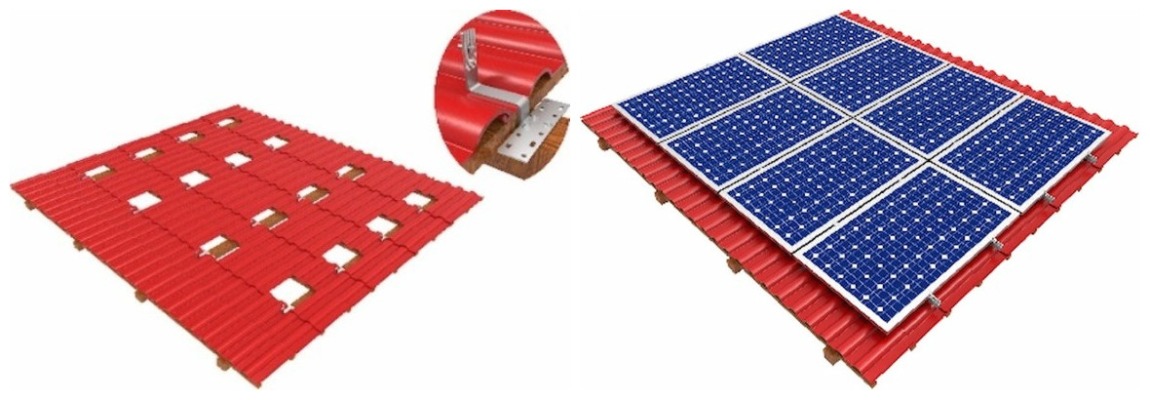

Tile Roof Solar Mounting System is a set of hardware that is used to secure solar panels to atile roof. These systems are designed to withstand the weight of the solar panels and provide asecure attachment that won't damage the tiles or compromise the integrity of the roof.



  • Project Site :

    Pithed Roof

  • Foundation :

    N/A

  • Tilt Angle :

    0°-60°

  • Wind Load :

    ≤45m/s

  • Snow Load :

    ≤1.5KN/m²

  • Applicable Module :

    Frame & Frameless

  • Module Orientation :

    Landscape & Portrait

  • Origin of Product :

    China

  • Reference Standards :

    JIS C 8955: 2017; AS/NZS 1170; DIN1055; ASCE/SEI 7-05; EN 1991-1-4:2005; International Building Code: IBC 2009

  • Usage Time :

    More than 25 years

  • Quality Assurance :

    10 Years

  • Material :

    Aluminium 6005 T5 & Carbon Steel

  • Surface Treatment :

    Anodizing & HDG & Zinc Magnesium Aluminum(ZAM)
Inquiry now

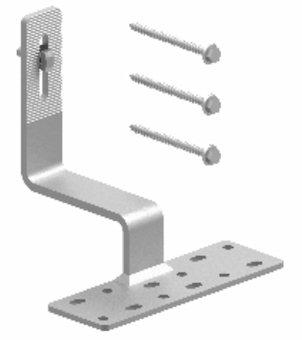

A diverse range of roof hooks cater to different tile roofs, including but not limited to ceramic, Spanish, flat (carp), slate, and roofing sheet tiles;

Various mounting solutions for tile roof;

Compatible with various types of photovoltaic solar panels;

Custom-designed tile hooks tailored to specific tile specifications;

Fabricated from SUS 304 stainless steel;

Simplified and speedy installation process;

No requirement for drilling into the tile;

Slotted for easy adjustment.



















































Hot Tags :

solar tile hook

solar tile roof system

solar tile roof hook

Solar Tile Roof Flush Mounting System

Solar Panel Tile Roof Mounting

Tile Roof Solar Mounting Bracket

Tile roof hooks for solar

solar mounting tile roof hook
