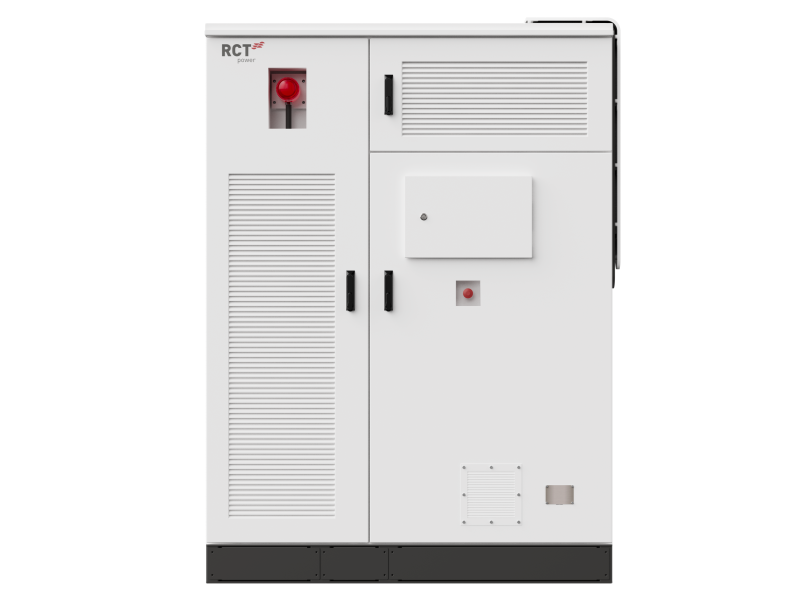

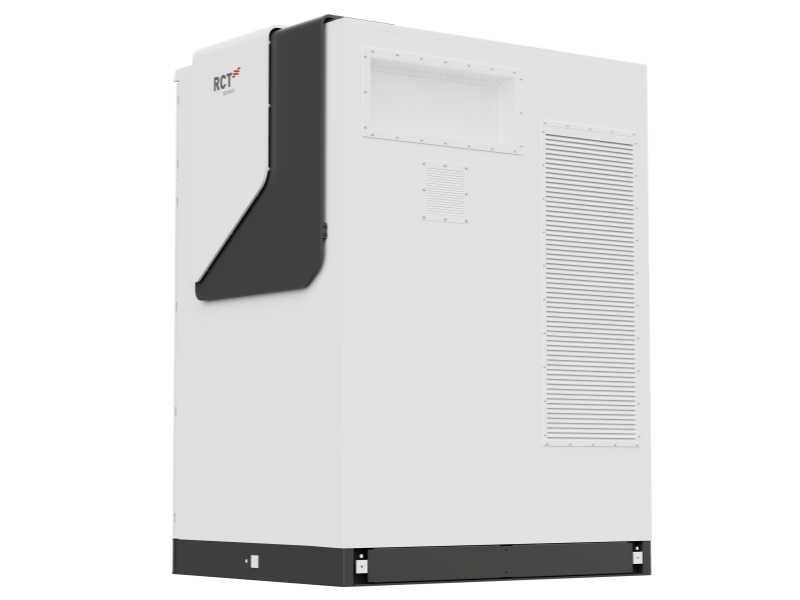

RCT POWER CESS 200

Commercial & Industrial Energy Storage System

The RCT POWER CESS 200 is an all-in-one commercial and industrial energy storage system designed to enhance energy efficiency, improve power reliability, and maximize the value of renewable energy. Integrating advanced LiFePO₄ battery technology, intelligent energy management, and optional PCS and backup power functions, it provides a safe, scalable, and high-performance solution for a wide range of C&I applications.

Engineered for peak shaving, self-consumption optimization, backup power, and solar integration, the system helps businesses reduce electricity costs while ensuring stable operation during grid interruptions. Its modular architecture and liquid-cooled battery design deliver high efficiency, long service life, and reliable performance in demanding environments.

Inquiry now

Key Features

All-in-One Design – Integrated battery, EMS, and optional PCS for simplified installation and operation.
233 kWh Battery Capacity – High-energy-density LiFePO₄ battery system with excellent safety and long cycle life.
Seamless PV Integration – Supports photovoltaic connection for maximizing solar self-consumption.
Reliable Backup Power – Optional Static Transfer Switch (STS) enables fast backup power during grid outages.
Liquid Cooling Technology – Ensures optimal battery temperature, improving efficiency and extending battery lifespan.
Intelligent Energy Management – Built-in EMS supports real-time monitoring and optimized energy dispatch.
Industrial-Grade Protection – IP54 and NEMA 3R enclosure suitable for outdoor commercial applications.
Comprehensive Safety Design – Equipped with gas detection, smoke detection, temperature monitoring, fire suppression, emergency stop, and alarm systems.

Typical Applications

Commercial buildings
Industrial facilities
Manufacturing plants
Shopping malls
Office parks
Hospitals
Schools
Microgrids
Solar + Storage projects

BATTERY			CONVERTER (OPTIONAL)	IEC
Nominal capacity	233 kWh		Max. number of MPPTs	2
Battery technology	LiFePO4		Max. string voltage	900 Vdc
Charge / discharge rate	0.5P		Max. input current per MPPT	80 A
Battery pack structure	1P52S		Rated power	700 kW
Cooling	Liquid Cooling
BMS	Integrated
Rated DC voltage	832 Vdc
DC voltage range	775 - 928 Vdc
INVERTER	IEC	UL	BACKUP POWER (OPTIONAL)	IEC
DC Operating voltage range	650 - 950 Vdc	700 - 950 Vdc	Rated power	200 kW
Rated AC power	100 kW	125 kW	Rated voltage	400 Vac
Rated AC current	144 A	150 A	Rated Frequency	50 / 60 Hz
AC rated voltage	400 Vac	480 Vac	Long-term overload capacity	110%
AC line frequency	50 / 60 Hz	60 Hz
Peak efficiency	98.50%	98.50%
ENERGY MANAGEMENT SYSTEM
EMS	Integrated
COMMUNICATION
Communication protocol	Modbus TCP/RTU, CAN
Touch panel	15.6" industrial standard
Cloud / APP	Yes
OPERATION
Relative operating humidity	0 ~ 95% RH, non-condensing
Operating temperature range	-20°C ~ +45°C
Operating altitude	≤ 2000m
DIMENSIONS (TOTAL)
Dimensions (W x H x D)	1600 x 2200 x 1300 mm
Weight	Approximately 3200 kg
SAFETY / STANDARDS
Protection	IP54 / NEMA 3R
Corrosion-proof grade	C4
Safety	a. Flammable/explosive Gas detection		e. Aerosol Fire Extinguish
	b. Flammable/explosive Gas exhaust		f. Siren and Strobe Alarm
	c. Smoke Detection		g. Emergency Stop Button
	d. Temperature Detection		h. Dry Pipe and Sprinkler
Certification	UN 38.3, IEC 62619, IEC 63056, EN 62477, IEC 60730, EN 62933, EN 61000 NFPA 69, UL 1973, UL 60730, UL 9540A, UL 9540
